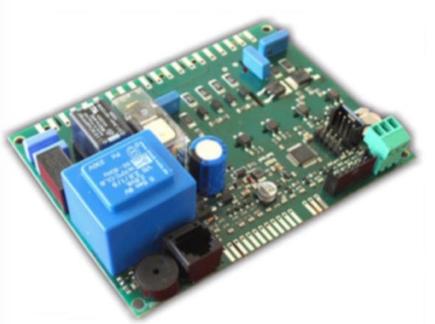

Eco Stove Plus is designed to provide the most advanced control performances at the most reduced dimension and at a low price.
The device controls the following external modules:
– Supply air flow rate;
– Hall sensor (by encoder) control for fumes exhaust fan;
– Hall sensor for the cochlea’s motor reducer in continuous mode;
– Pellets Level controlGSM module for remote control using ordinary SMS text or dedicated APP;
– WI-FI module for local/remote control using the APP or through the Internet;
– KNX Gateway for integration with building automation systems;
– Software upload through standard USB pen drive.
– Fully programmable I/O through Stove Maker tool
– Operational profile of the board fully programmable through Stove Maker tool
– Total outputs available : 4
– Total inputs available:13 (9+4 for alarms)
– Optically isolated alarm inputs
– Available with “edge” fast-on connectors
– PWM output for low-consumption pump control
– Serial Communication interface
– Display’s serial interface
– Battery backup for weekly programmable clock
– Several accessories available
